HORIZONTAL FACADE SCREEN SYSTEM

No.HFS001

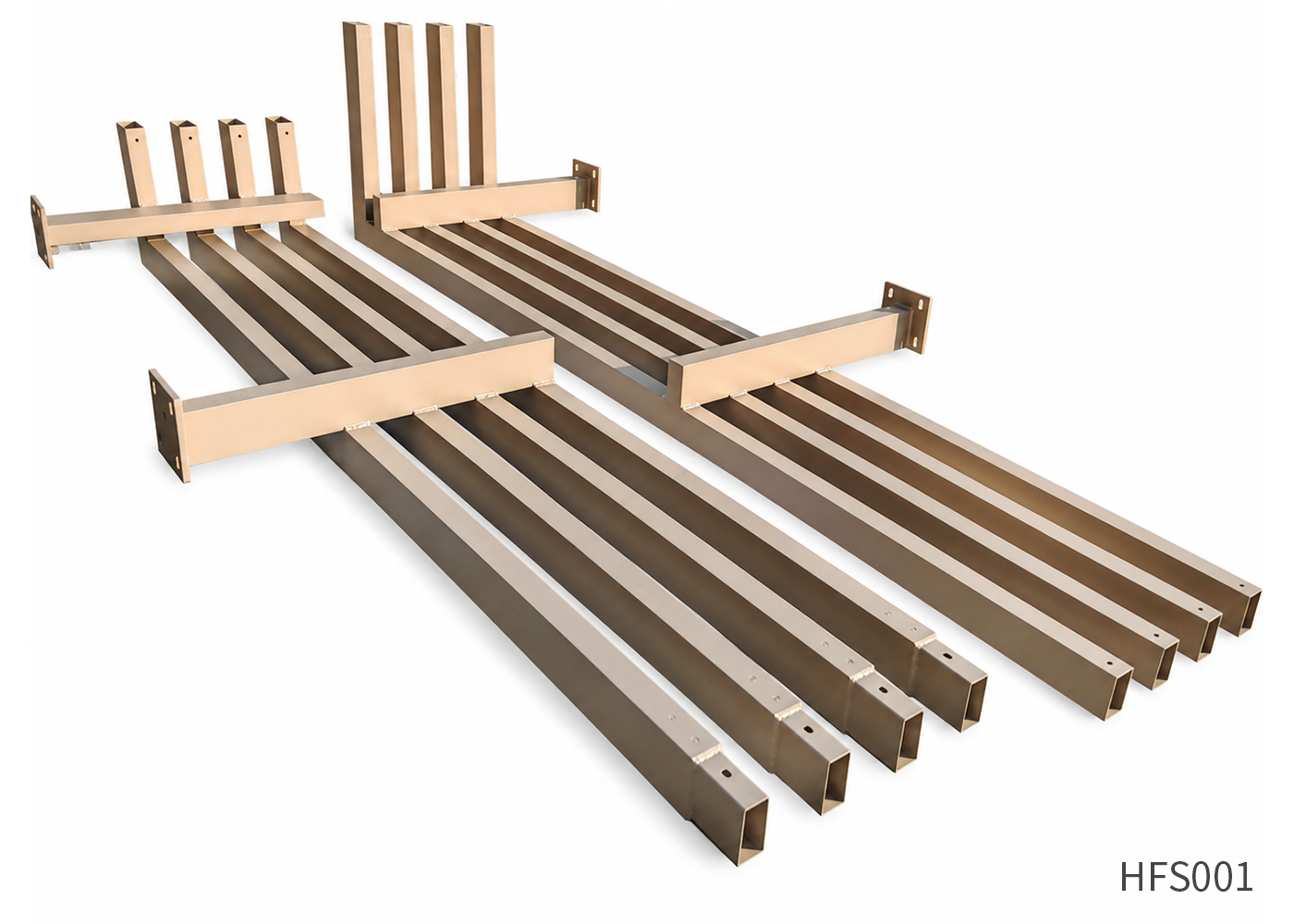

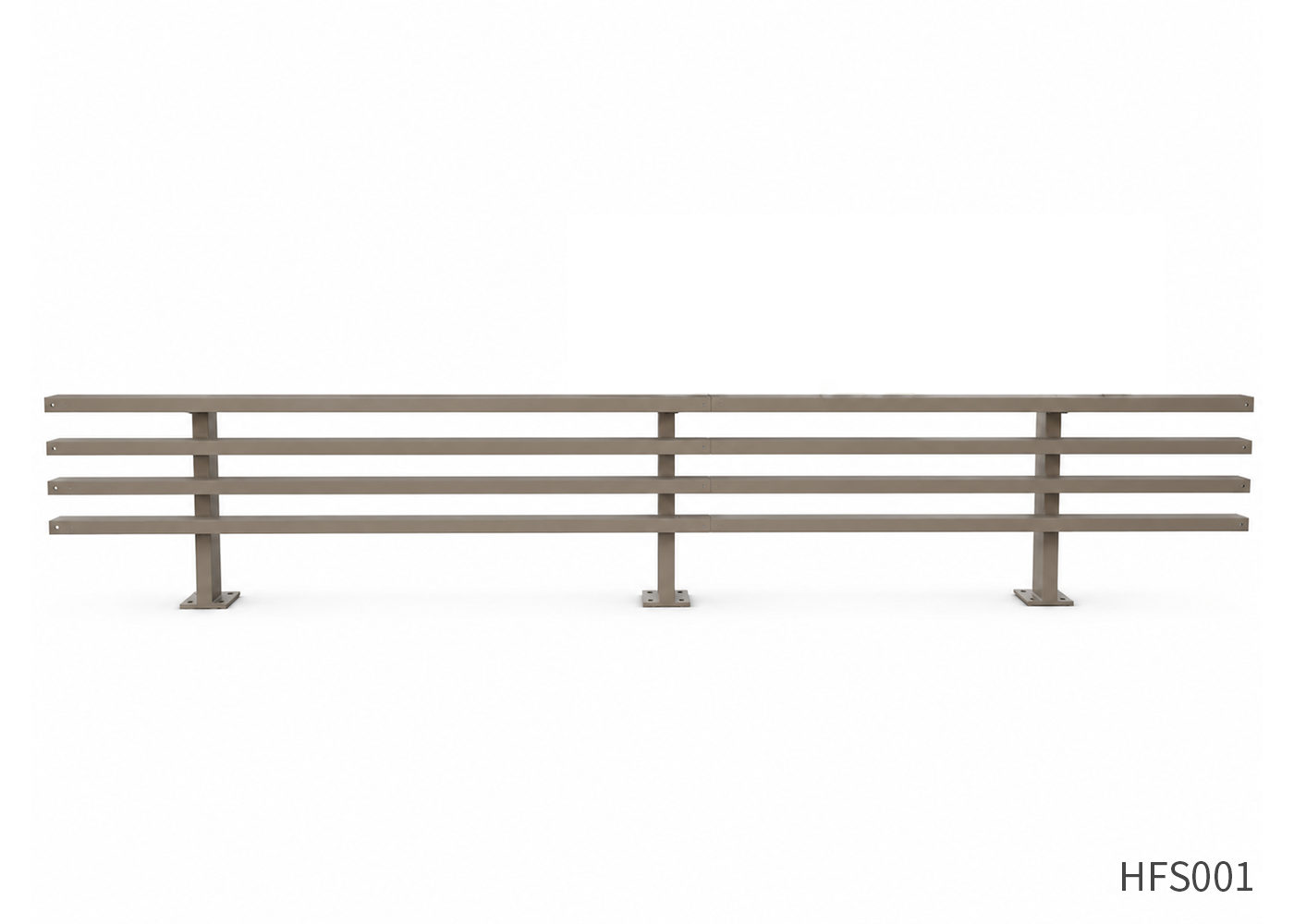

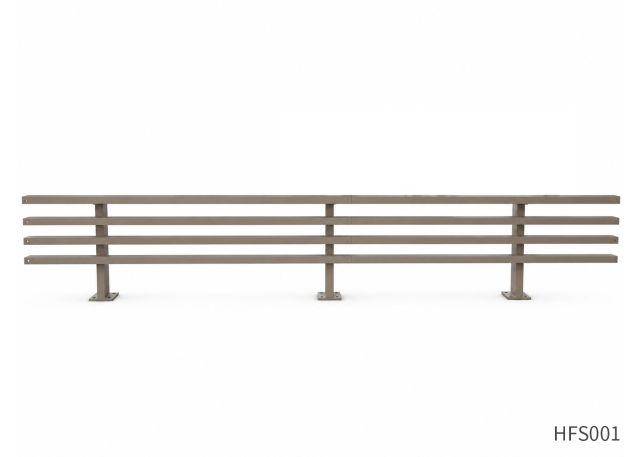

A custom horizontal facade screen system designed for exterior wall decoration, sun shading and architectural enhancement. Made from durable powder-coated metal, it is available in customized sizes, colors and finishes to meet different project requirements.

GET A QUOTE

Add to Quote List View Quote List

Description

Product Specifications

Aluminum Horizontal Batten Screen

A project-engineered aluminum horizontal batten screen developed for architectural façade applications, with powder-coated finished modules, factory trial assembly and detailed connection inspection completed before delivery.

Item	Specification
Item No.	S-02
Overall Size	20129 × 100 × 750 mm
Material	Aluminum
Batten Profile	100 × 50 × 3 mm Aluminum Tube
Surface Finish	Powder Coated
Color	Sensational Champagne
Mounting Plate	150 × 150 × 12 mm
Fixing Method	4 × M12 Chemical Anchors, 125 mm Embedment

Engineering Design

Project layout, module dimensions, corner geometry and fixing details developed before production.

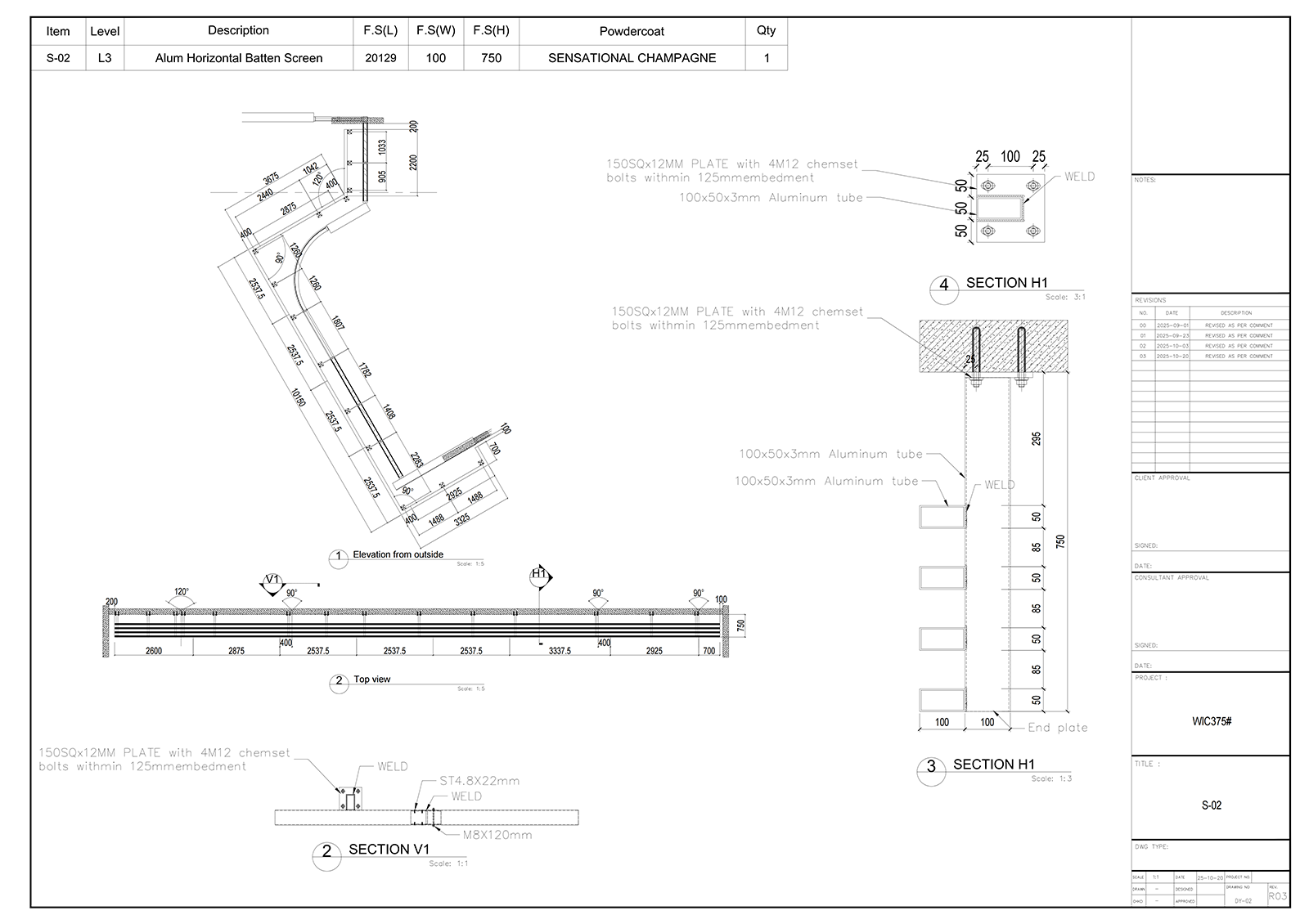

Aluminum horizontal batten screen engineering drawing

Project Layout & Connection Details

Semi-Finished Production

Fabricated aluminum modules are checked before powder coating and final assembly.

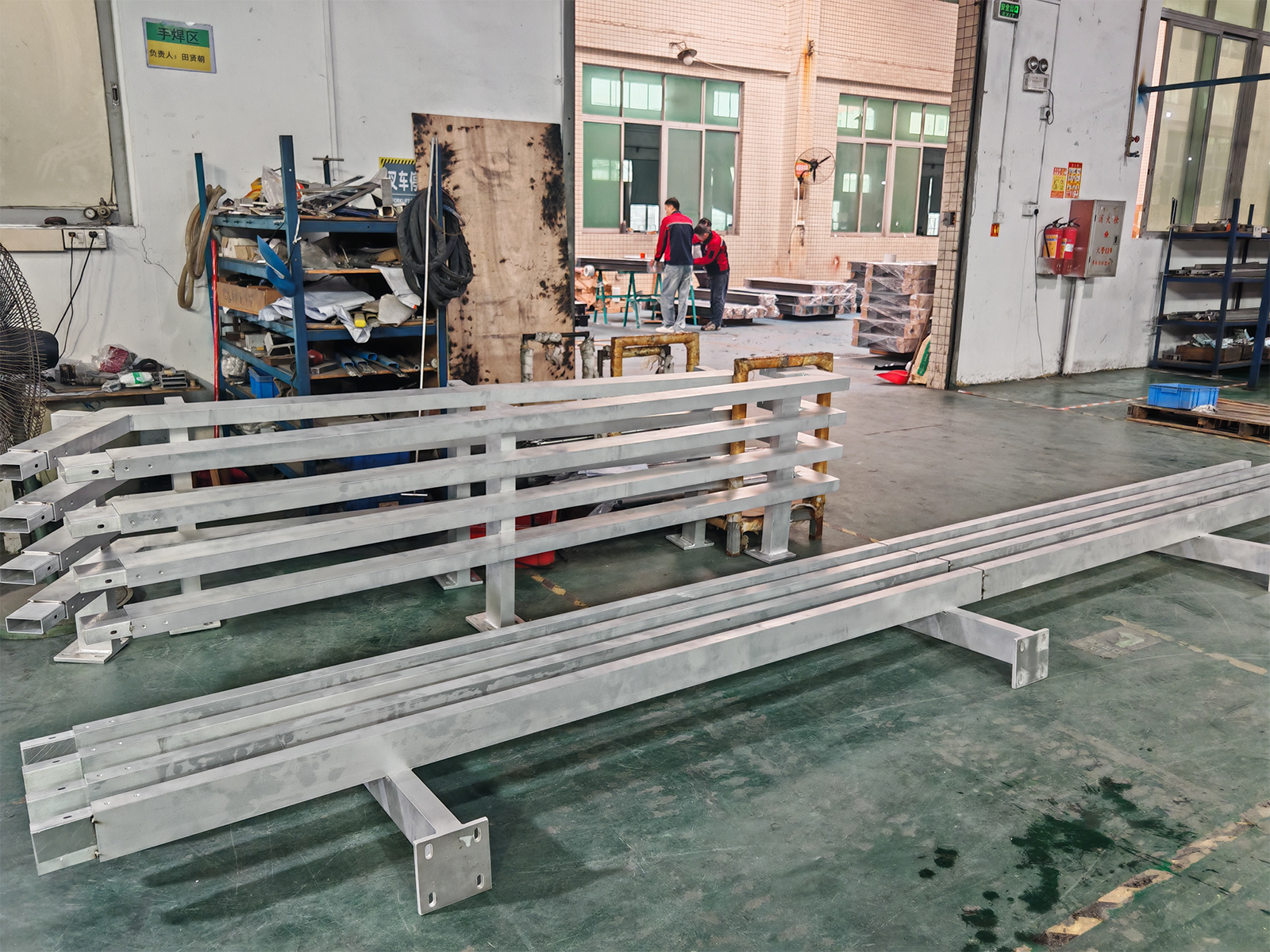

Semi-finished aluminum horizontal batten screen modules

Semi-Finished Aluminum Modules

Finished Product

Completed powder-coated modules show the corner sections, straight sections and uniform batten arrangement.

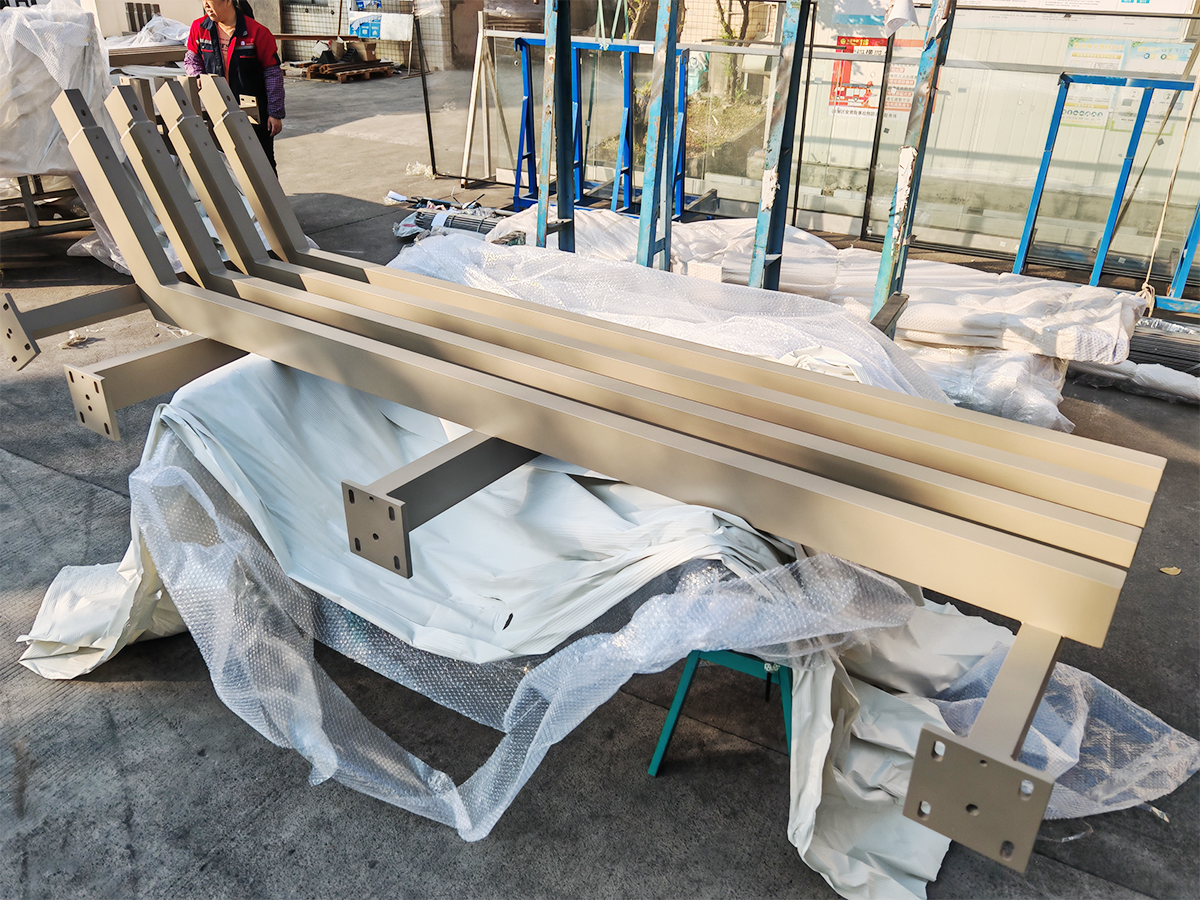

Finished aluminum batten screen corner module

Finished Corner Module

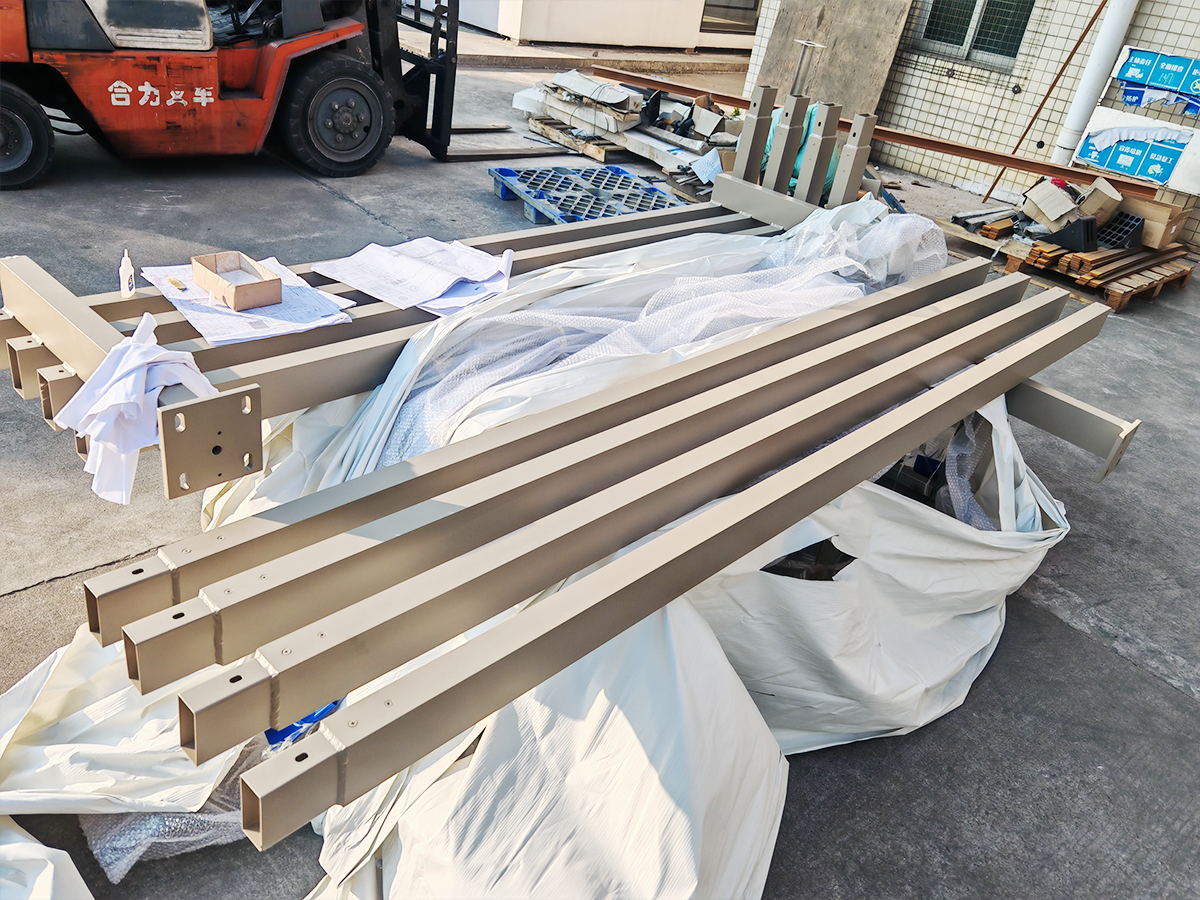

Finished aluminum batten screen straight modules

Finished Straight Modules

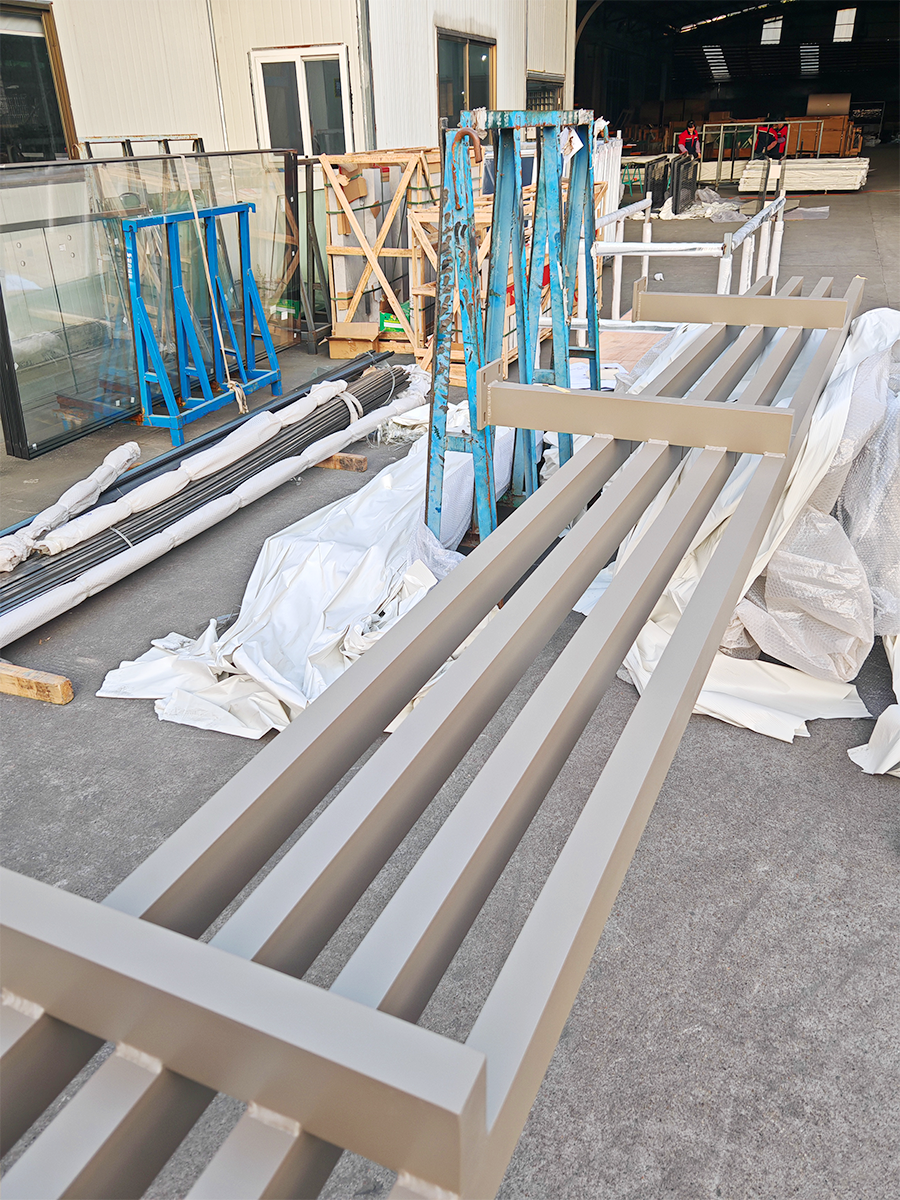

Finished aluminum horizontal batten arrangement

Finished Batten Arrangement

Factory Trial Assembly

Full-scale trial assembly verifies module alignment, overall dimensions and fixing positions before packing.

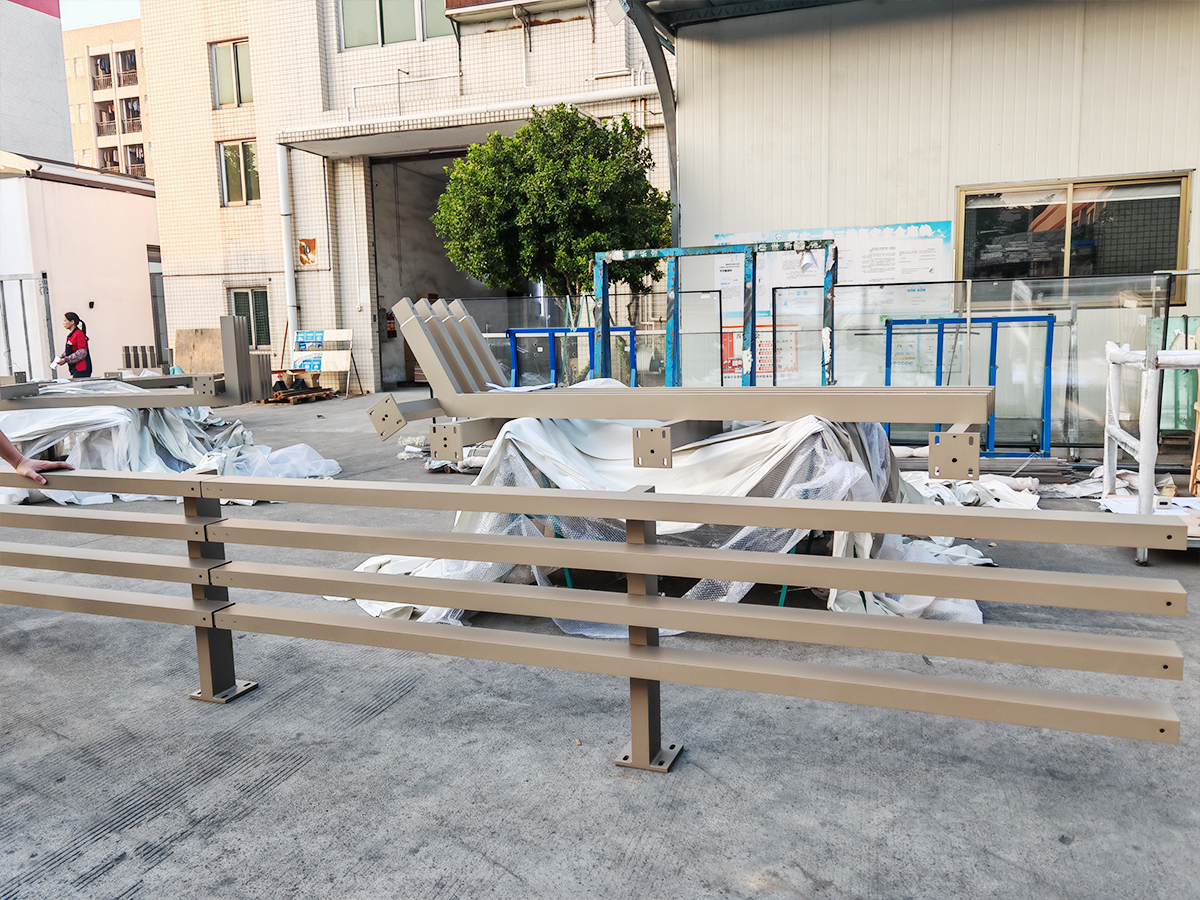

Trial Assembly — Module Alignment

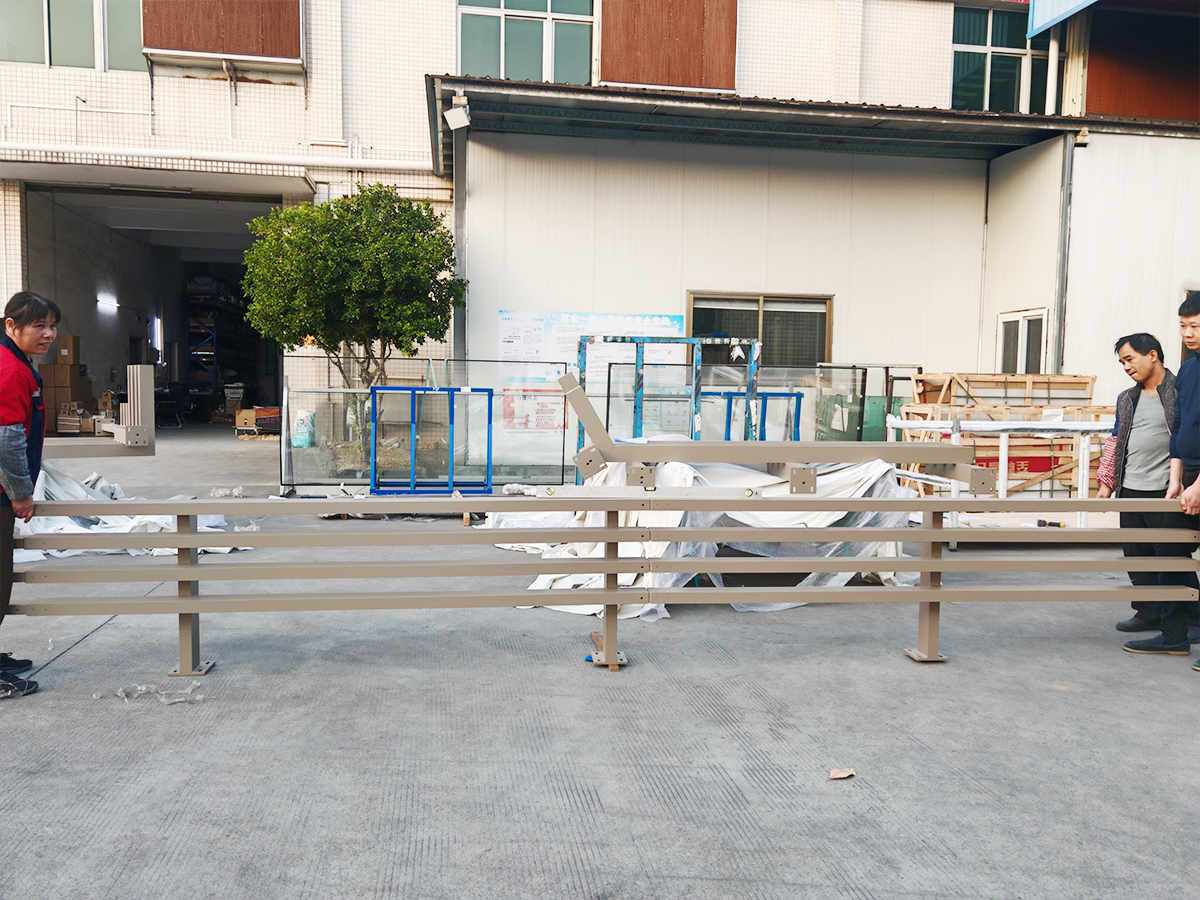

Aluminum batten screen full-length trial assembly check

Trial Assembly — Full-Length Check

Connection Detail

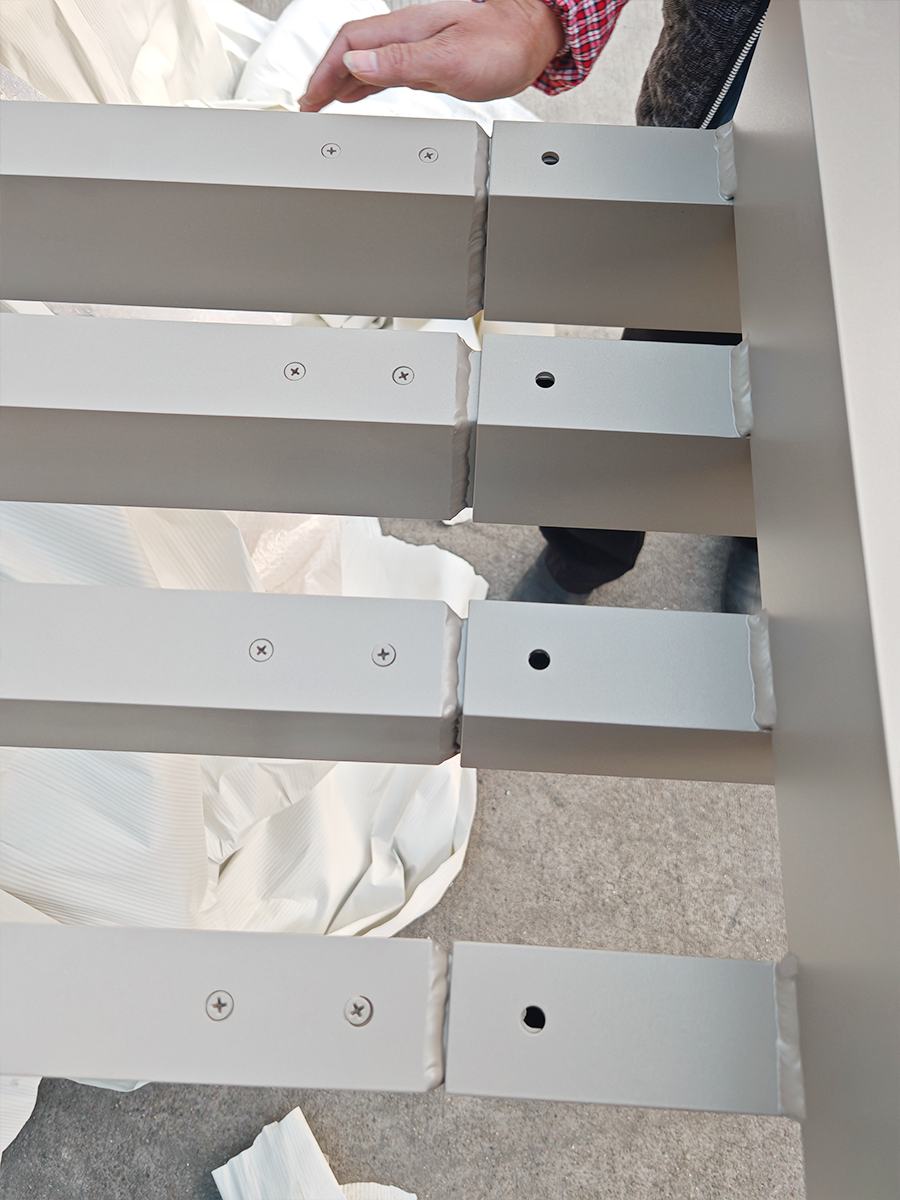

Close-up inspection confirms the batten joint, fixing holes, screws and welded support connection.

Batten-to-Support Connection Detail

Engineered•Produced•Trial Assembled•Inspected
