ALUMINUM CHANNEL FG0366 FRAMELESS GLASS SYSTEM
Model YX-FG0366
Product origin Guangdong,Foshan
With a simple and fashionable design，aluminum channel railing consists of three parts: aluminum groove,glass panel, and handrail. The design of aluminum groove with different sizes meets the needs of different scenarios, making aluminum channel railings not only suitable for residential buildings, but also for commercial buildings.
Glass infills range from 17.52-22.28 mm laminated or monolithic tempered glass. The product's finish and color are completely customizable.
Download
- Information
- Download
- FAQ
| YX NO. | YX-FG0366 | ||
| TOTAL HEIGHT | 950 -1200 mm Or Customized | ||
| METARIAL | FINISH | SIZE | |

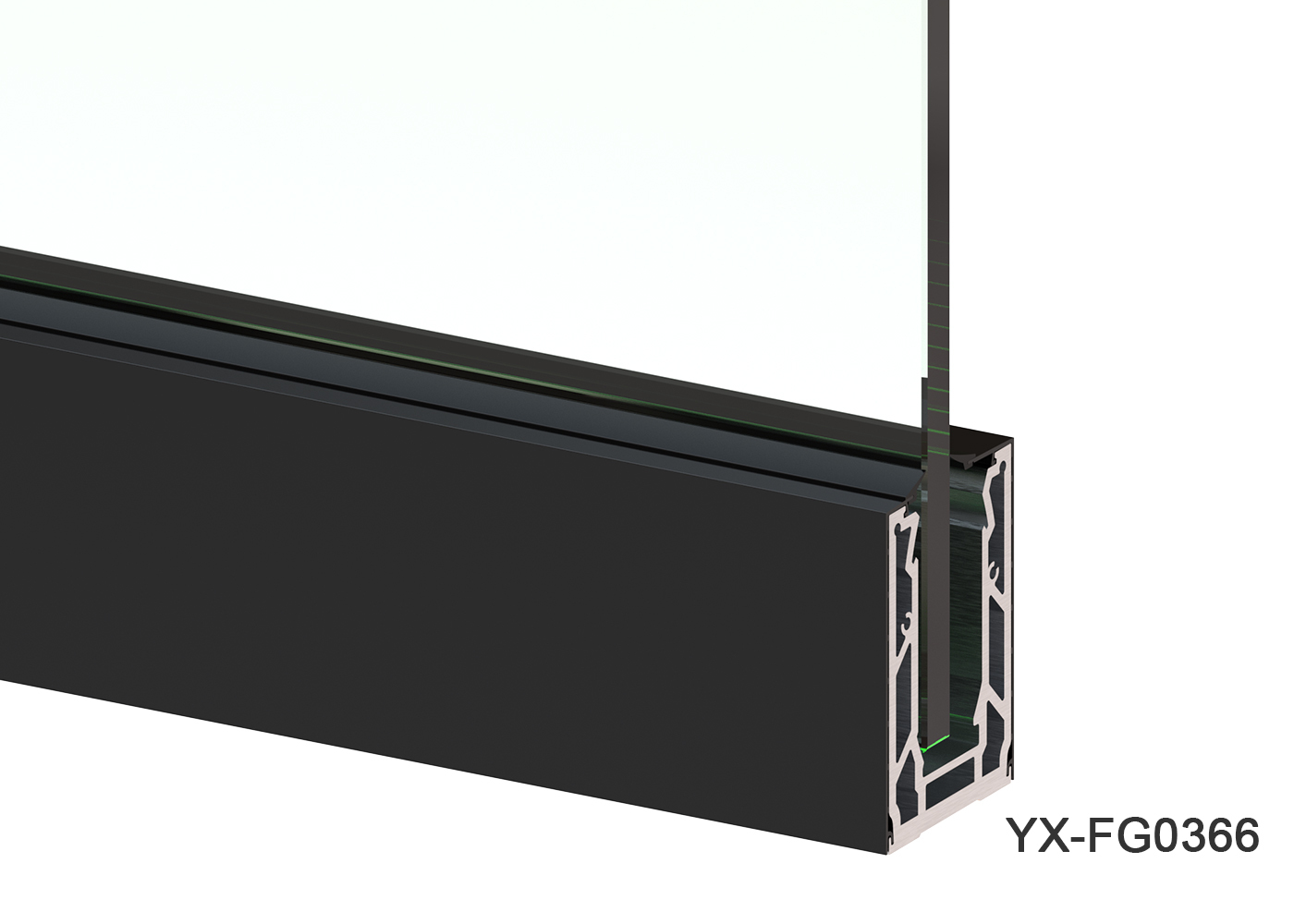

| BASE GROOVE | Aluminum Groove with Stainless Steel Cover | - Satin - Mirror - Powder Coated (Outdoor Standard) - Electroplating (PVD) | 85*120 mm |
| INFILL | Glass | - Clear - Tinted - Frosted | Glass Thickness 17.52~22.28 mm |
| TOP RAIL / HANDRAIL | Stainless Steel - SS 304 - SS 316 | - Satin - Mirror - Powder Coated (Outdoor Standard) - Electroplating (PVD) | - U-cap - Round Tube：∅42.4 / ∅50.8 mm - Square Tube: 25*50 / 40*40 mm - Round Slot: ∅42.4 mm - Square Slot: 40*40 / 25*21 mm |
| Wooden - Beech - Sapele - Teak | - Raw - Walnut Color - Rosewood Color Or Customized | - Round：∅42.4 / ∅50.8 mm - Square Slot Handrail：40*40 mm - Omiga Shape：40*80 mm Or Customized | |
